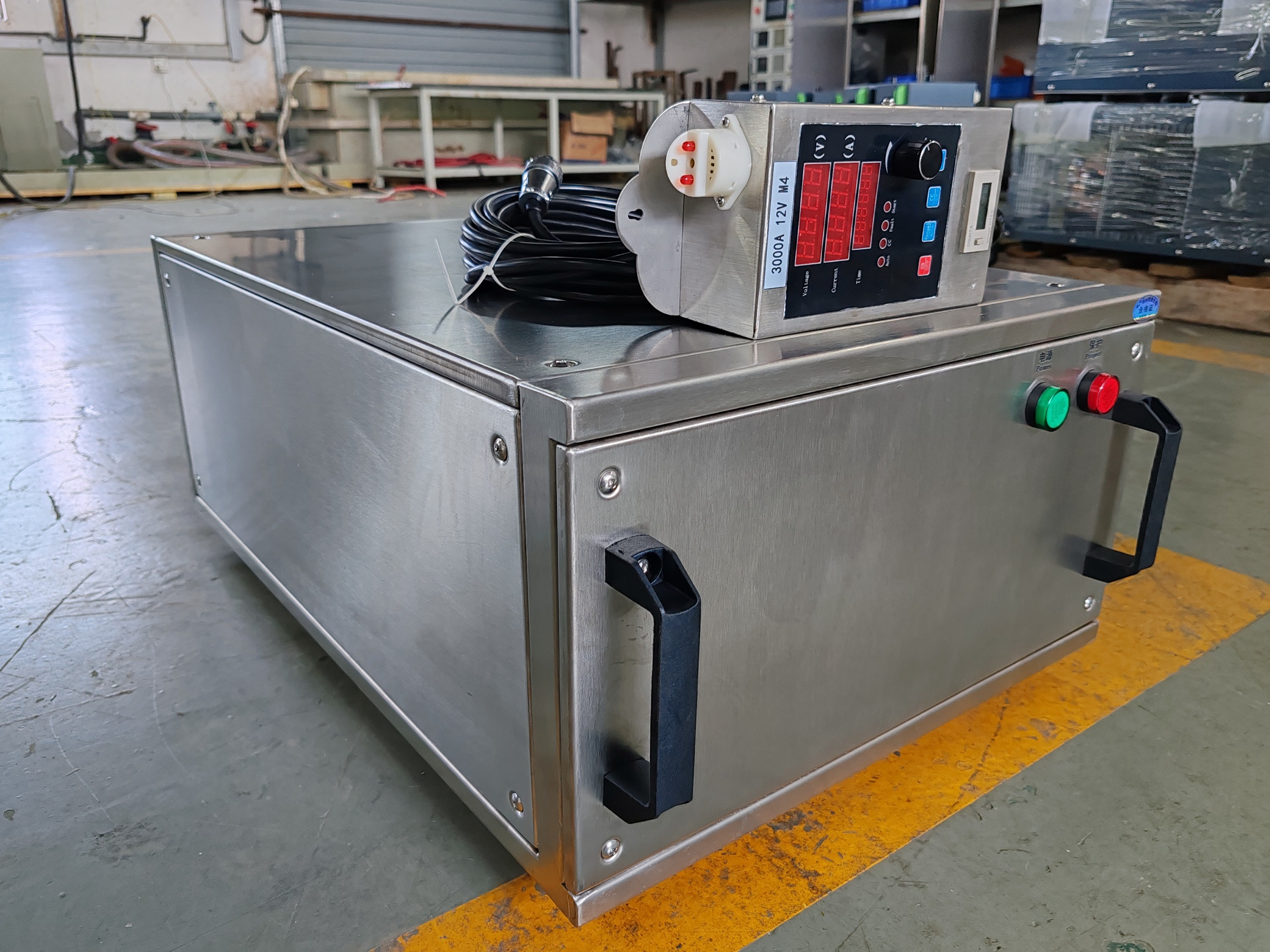

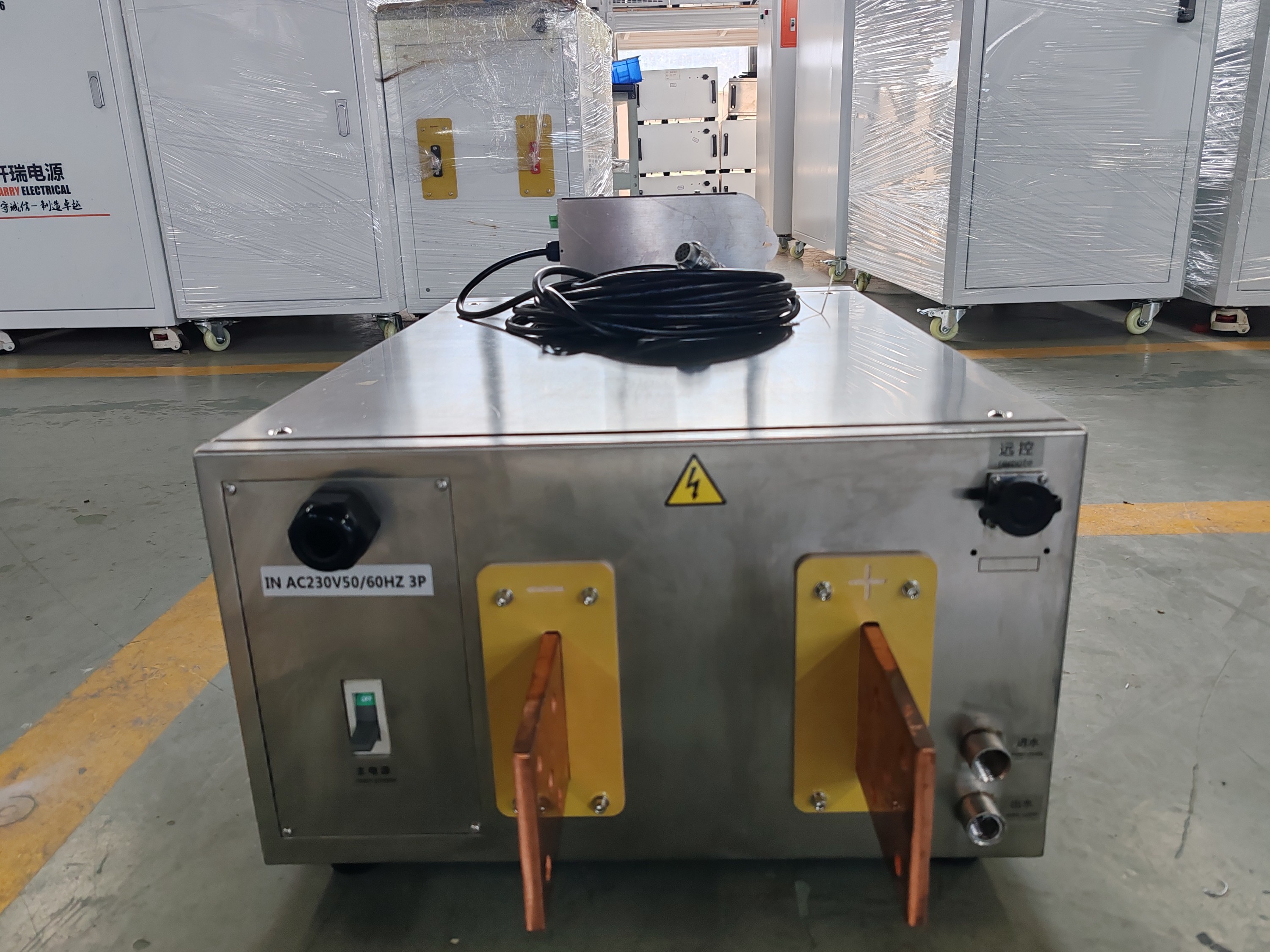

Zinc Galvanic Machine 12V 3000A Stainless Steel Case Hard Chrome water-cooling Electroplating Rectifier

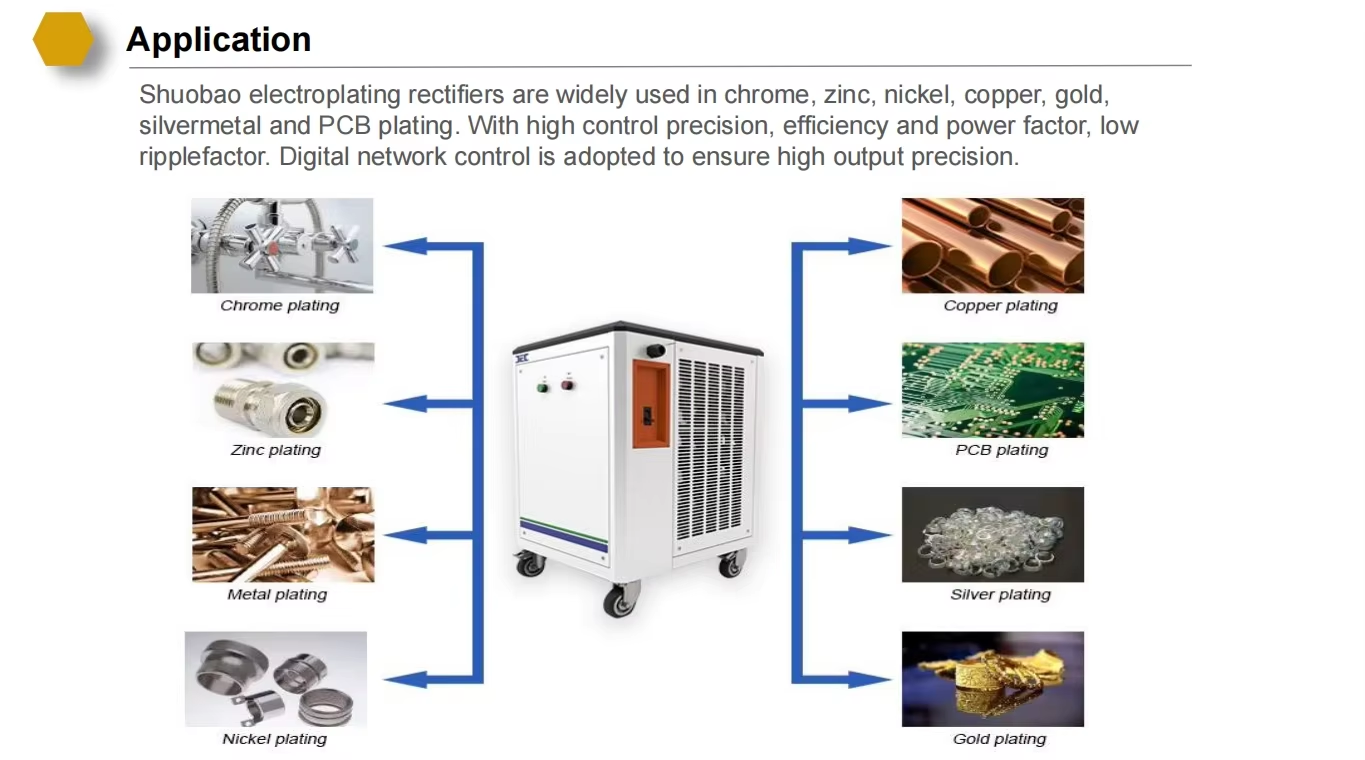

Our power supplies are widely used in a variety of industries, including surface finishing (such as plating and anodizing), wastewater treatment by electrocoagulation, electrolysis,etc .
- Product Details
- Technical Specification
- After-sale service
| input voltage | 3 phase 380vac±10%,50hz or 3 phase 400,415V,440v,480v,600vAC |
| output voltage | 0-12v dc adjustable |
| output current | 0-3000a adjustable |
| output power | 36KW |
| Adjustment range | From 0-100%continuously adjustable voltage and current |
| Output conditioning method | Switching mode,PWM Pulse control |
| Machine efficiency | ≥93% |
| Constant voltage control accuracy | Within 1.0%of rated output voltage |
| Constant current control accuracy | Within 1.0%of rated output current |
| Insulation resistance | 5MΩ or more |

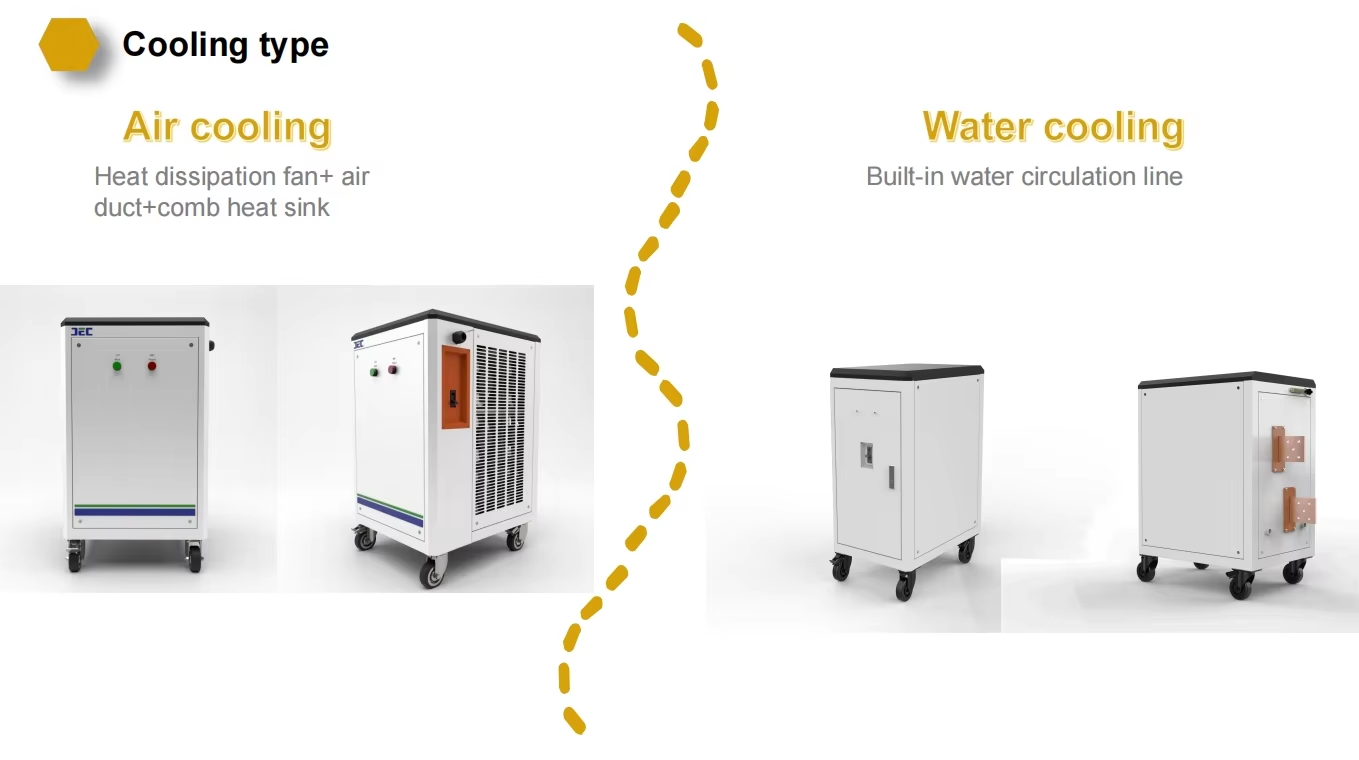

| Cooling system | water cooled |
| Ambient temperature | -20℃~50℃ |
| protection | Over heating,over current,over voltage,lack phase,over load,input over/low voltage |

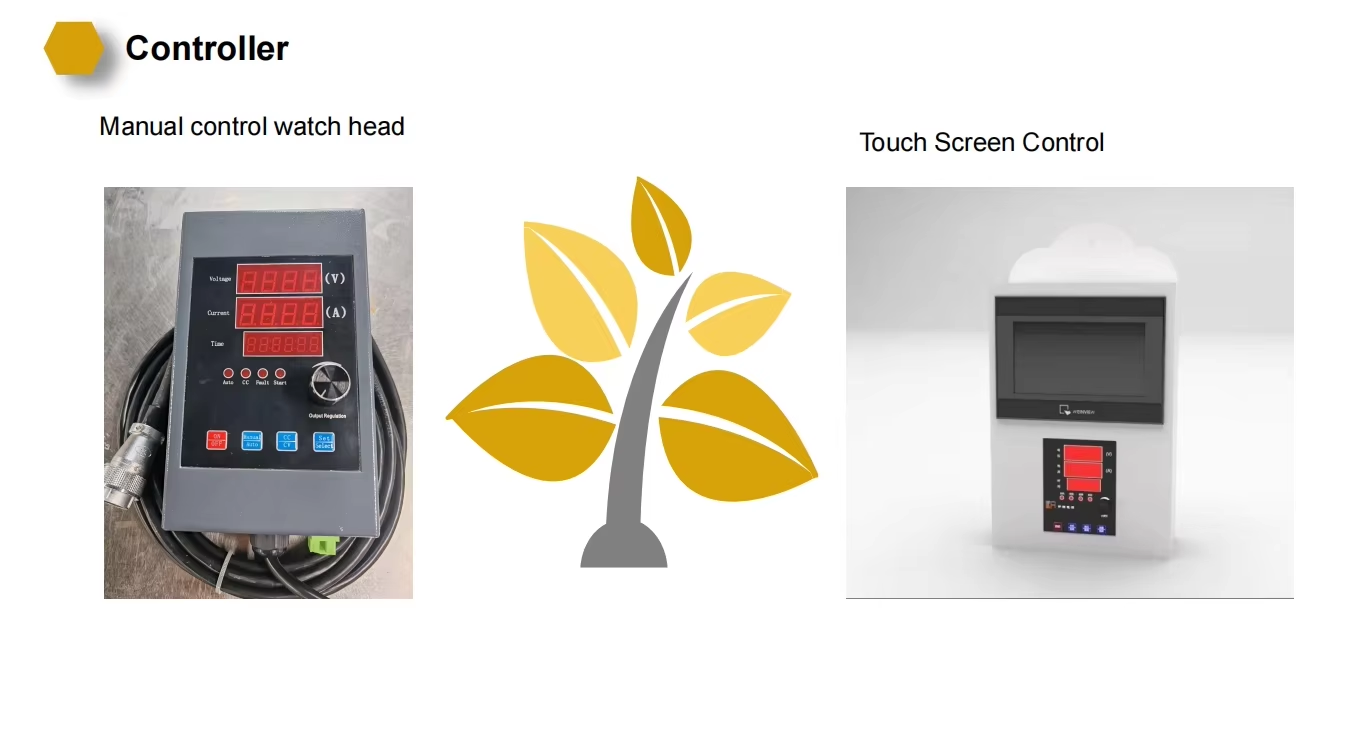

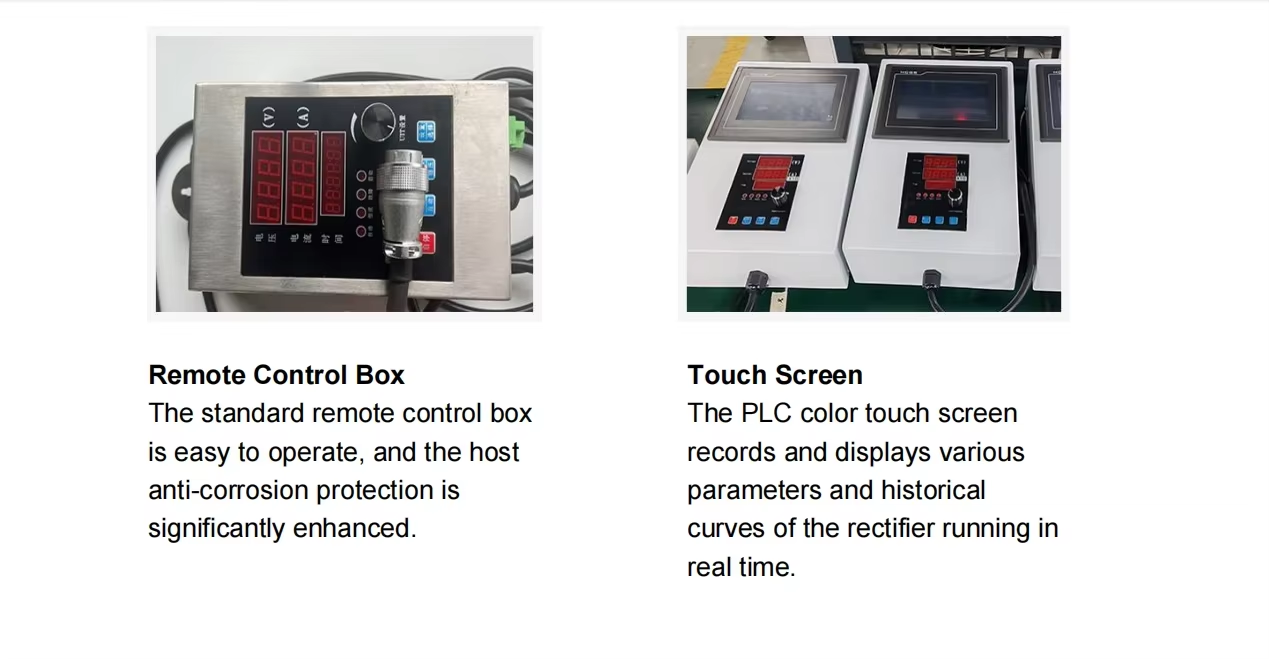

| Control mode | 5meter cables Remote control box, front panel control,PLC interface,touch screen with program can be OEM made |
Your Production Continuity Guaranteed
1. 24/7 Global Support Hub
• 🛡️ Instant Remote Assistance
Dedicated engineers accessible via live chat/video call for real-time troubleshooting - 15-min response guarantee
2. Comprehensive Warranty Protection
• ⏳ 12-Month Full Coverage
Free parts replacement + labor for all non-misuse defects (IGBT modules, control boards, cooling systems)
