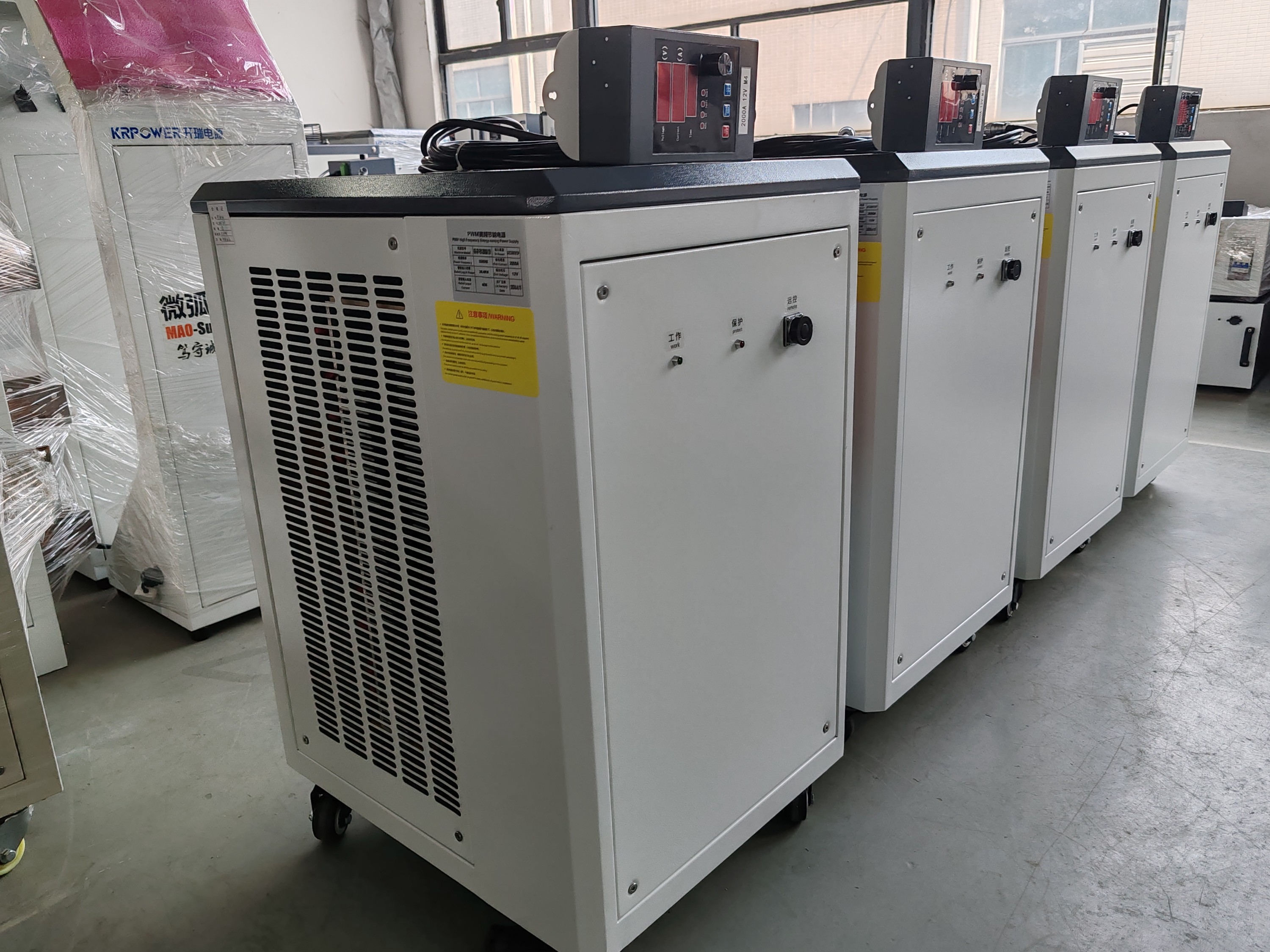

3000A 24V IGBT Rectifier | Aluminum Anodizing Power Supply
AC input voltage enters the rectifier circuit, where it’s filtered and converted into high-voltage DC output. This 3000A 24V zinc plating rectifier is available at factory price.

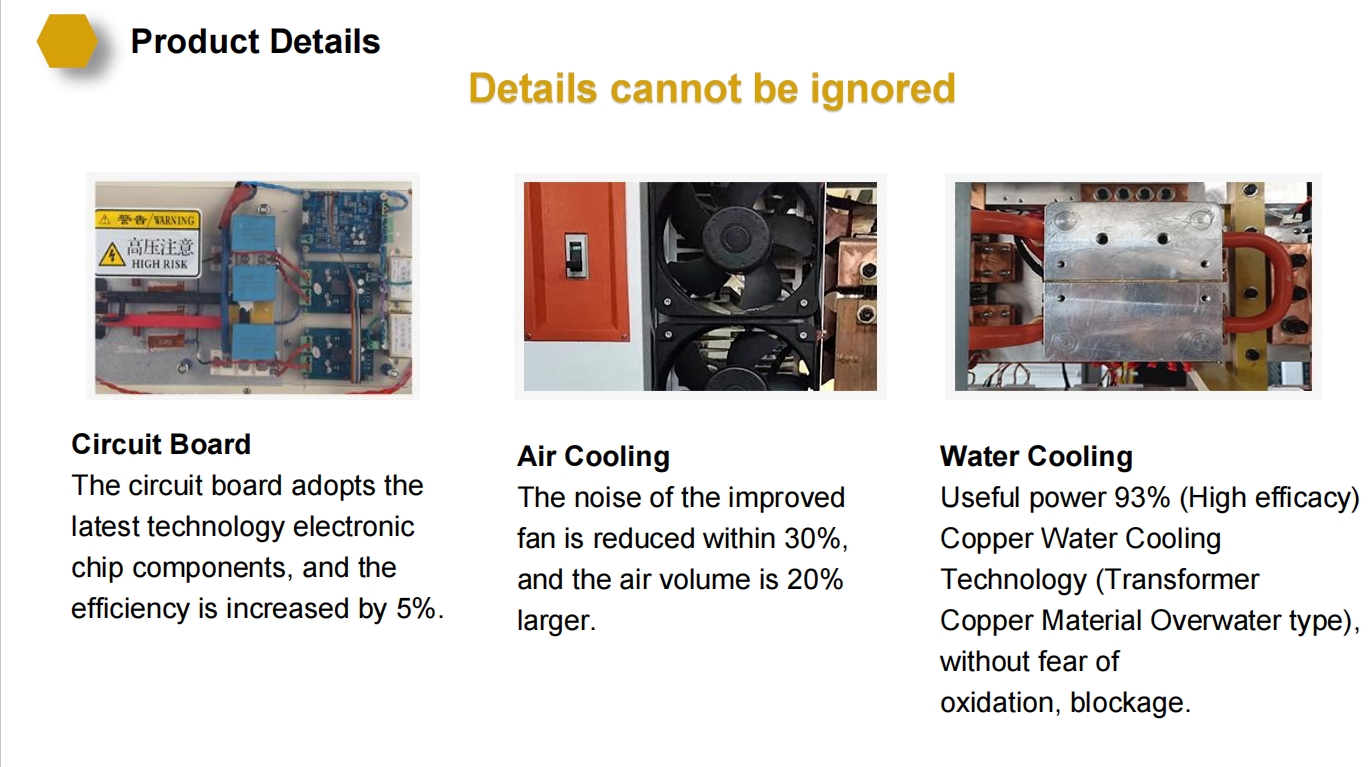

- Product Details
- Technical Specification
- After-sale service
Technical Parameters
| AC Input Voltage | 22V/380V/415V/460V±10%, Triple Phase,50H |
| DC Output Voltage | 0-24V Continuous Adjustable |
| DC Output Current | 0-3000A Continuous Adjustable |
| DC Output Power | 72KW |
| Waving Data | Waving valid values less than 3% |
| Constant current and constant voltage conversion | Precision of constant current 1%, precision of constant pressure 1%. |
| Defensive Function | Under Voltage, over voltage, overload, short circuit protection, thermal protection. |
The power factor | Using active power factor is positive, full range 0.95. |
| Overload protection time | 105~120% Rated output current. |
| Short-circuit protection | Circuit transient short circuit natural protection. Automatic recovery when short circuit is eliminated. |
Working frequency | 28KHz |
Operating temperature rang | -20℃~50℃ |
| DC voltage output waveform | 20MHZ oscilloscope measurement |
| Dimensions(L*W*H)mm | 740*555*892 |
Weight | 96KG |
We are pleasant to share our theory and experience on equipment maintenance with users.
We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.
The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…
If you need other power electroplating rectifiers, we can custom design them according to customer requirements. Please contact us.
