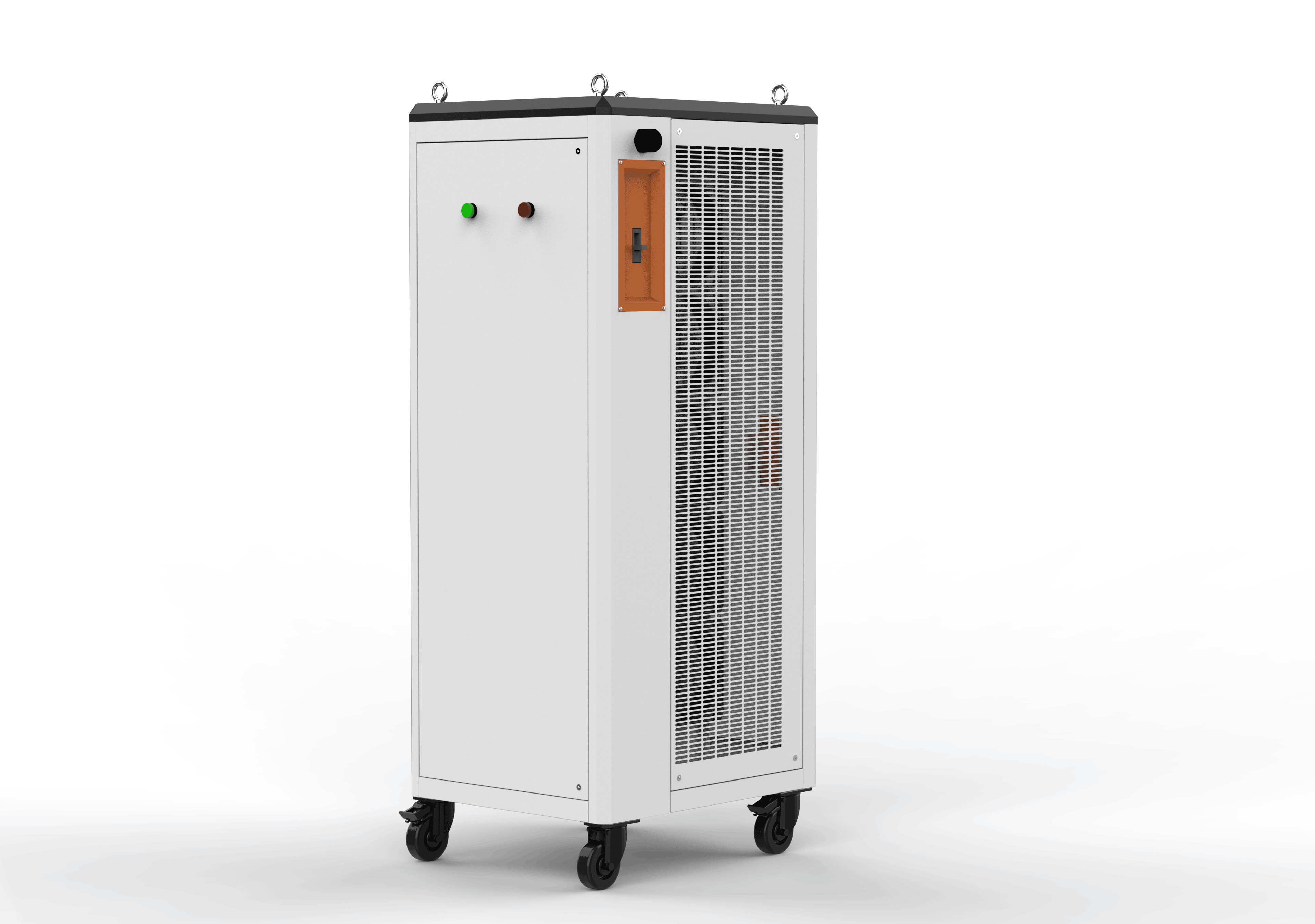

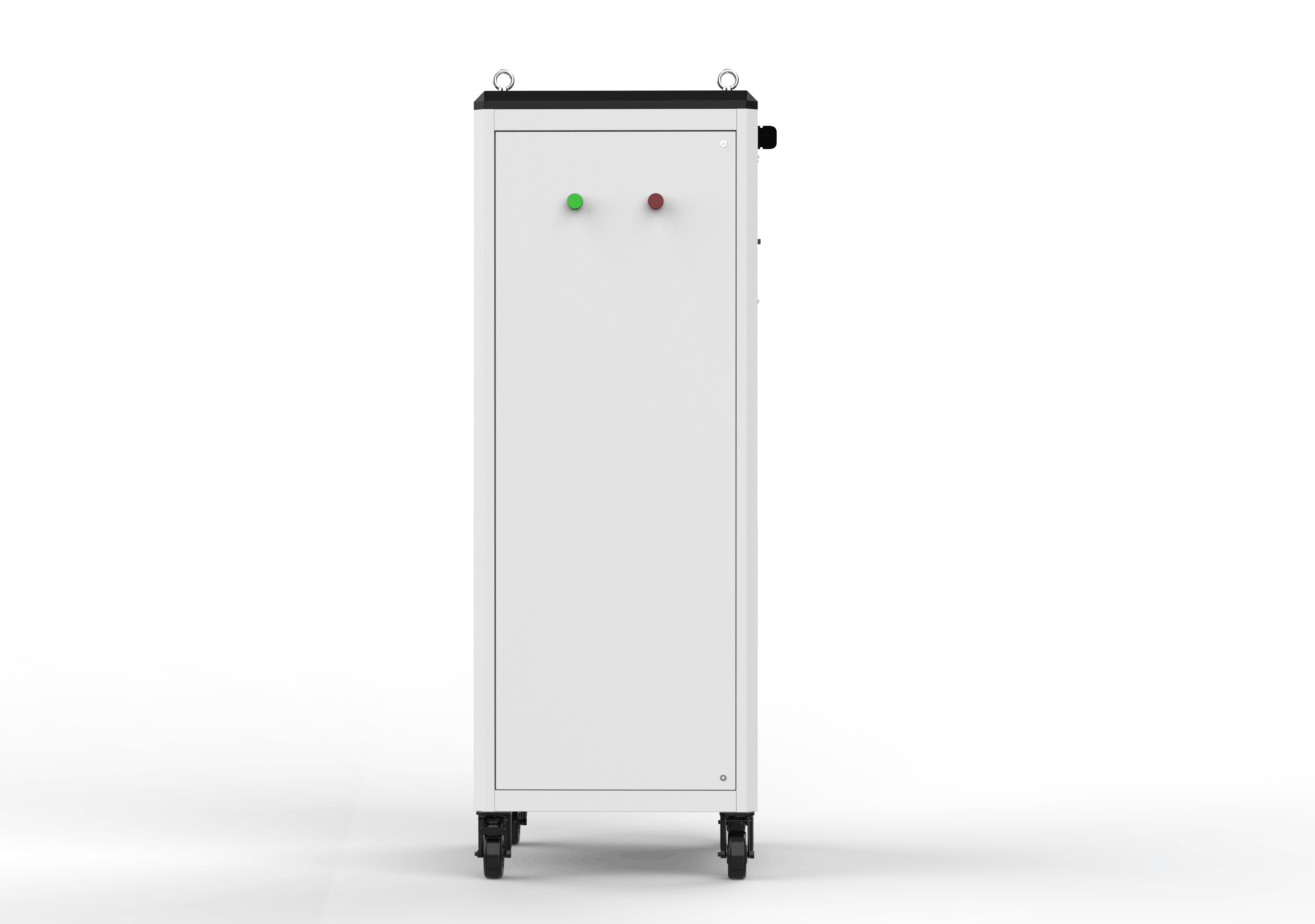

Industrial 5000A Three-Phase Plating Rectifier 12V/18V/24V Output power for Hard Chrome & Zinc-Nickel Plating｜±0.1% Ripple
0-5000 amps variable air-cooling IGBT rectifier for electroplating process, with remote control box and timer function, high frequency pulse current output, optional for 0-12V/ 0-18V/ 0-24V continuously adjustable output voltage. Reliable quality and cheap price rectifier will definitely satisfy your requirements.
- Product Details
- Technical Specification
| Model | JEC-GP-5000A/12V |
| Input Voltage | Three phase AC 380V/ 400V/ 415V/ 440V/ 460V/ 480V (optional, 220-1000V voltages are customizable) |
| Input Frequency | 50Hz/60Hz |
| Output Current | 0-5000A (continuously adjustable by 1A) |
| Output Voltage | DC 0-12V/ 0-18V/ 0-24V/ 0-36V/ 0-48V (optional, 8-500V voltages are customizable) Note: Output voltage is adjustable by 0.1V. |
| Output Frequency | 28kHz |
| Output Current Stability | ≤1% |
| Output Voltage Stability | ≤1% |
| Efficiency | ≥95% |

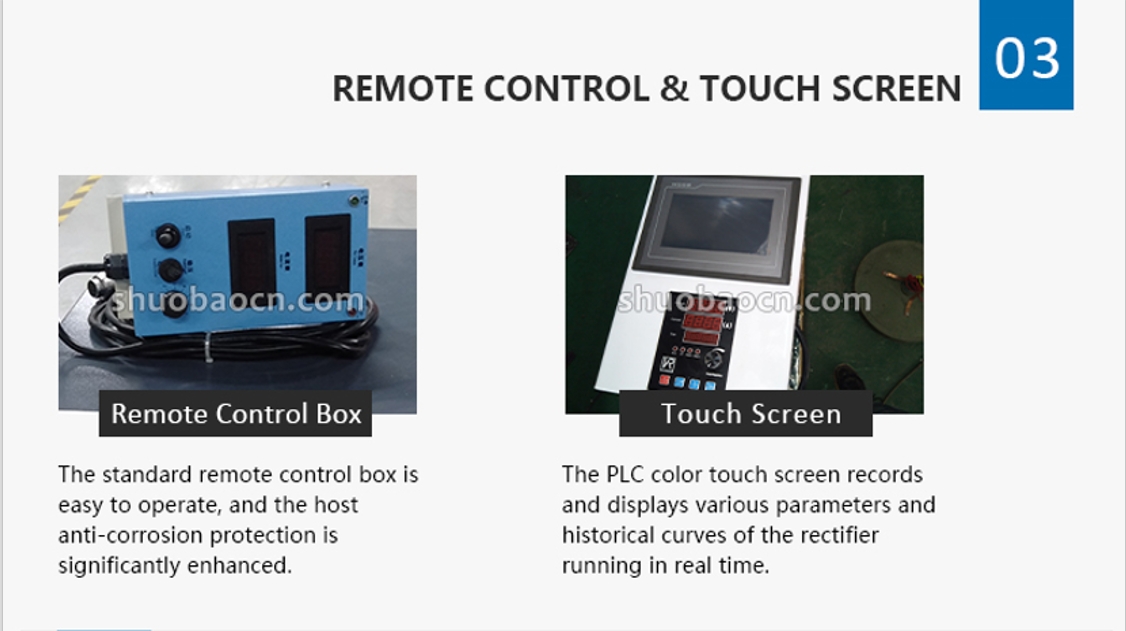

| Operation Mode | Remote control or manual control |

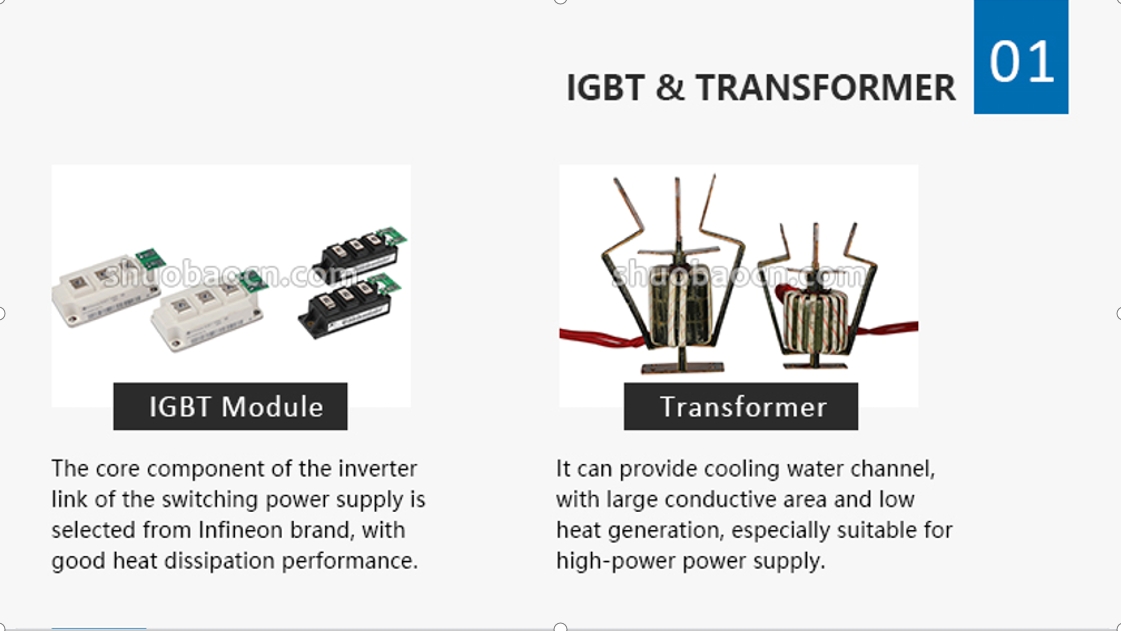

| Module | IGBT module |

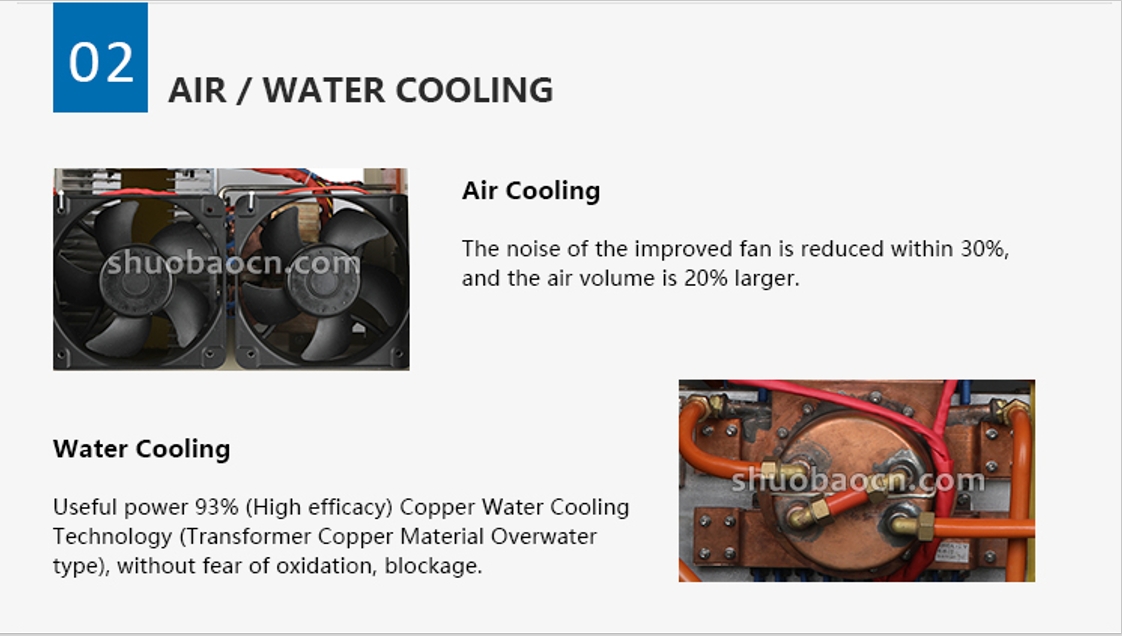

| Cooling Method | Air cooling |
| Start-up Postponing Time | ≤10s |
| Complete Protection Functions | Over current, over voltage, over heat, short circuit, phase lack, input undercurrent protection, over temperature, and diode defect. |
| Protection Grade | IP32 |
| Ambient Temperature | -20℃~50 |
| Size | 750*570*1505 |
| Net Weight | 260KG |
| Certification | CE, ISO, EAC |
| Warranty | 12 months |
