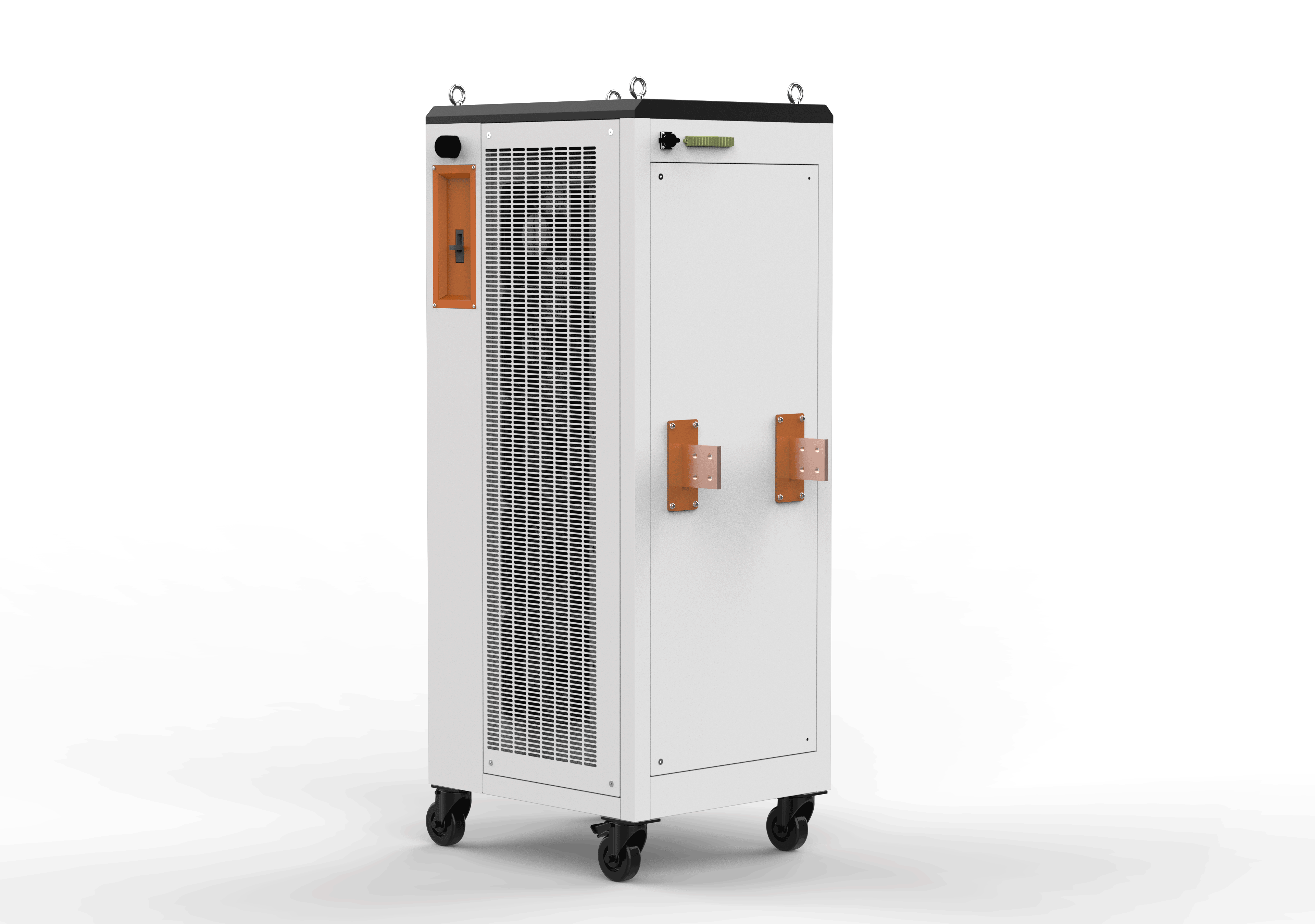

China Manufacter Custom High Frequency Variable Air Cooling Electropolishing Rectifier 8000A 12V Variable DC Power Supply
JEC electroplating rectifiers are widely used in chrome, zinc, nickel, copper, gold, silver, metal and PCB plating. With high
control precision, efficiency and power factor, low ripple factor. Digital network control is adopted to ensure high output
precision.
- Technical Specification
| Product Name | Air-cooling power switch |
| Cooling mode | Air Cooling |
| Power | 96KW |
| Input Current | AC 158.5A |
| Input Voltage | Three phase,AC380V±10% ,50HZ |
| Output Voltage | DC 0~12V adjustable |
| Output Current | DC 0~8000A adjustable |
| Efficiency | ≥95% |
| Power Factor | ≥0.98 |
| Control Mode | PLC, RS485 available |
| Stabilized Current Precision | ≤1%(Rated Current) |
| Dimension (L * W * H) | 925*580*1813mm |
| Protection | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function |
| ODM/OEM is accepted according to requirements* | |
