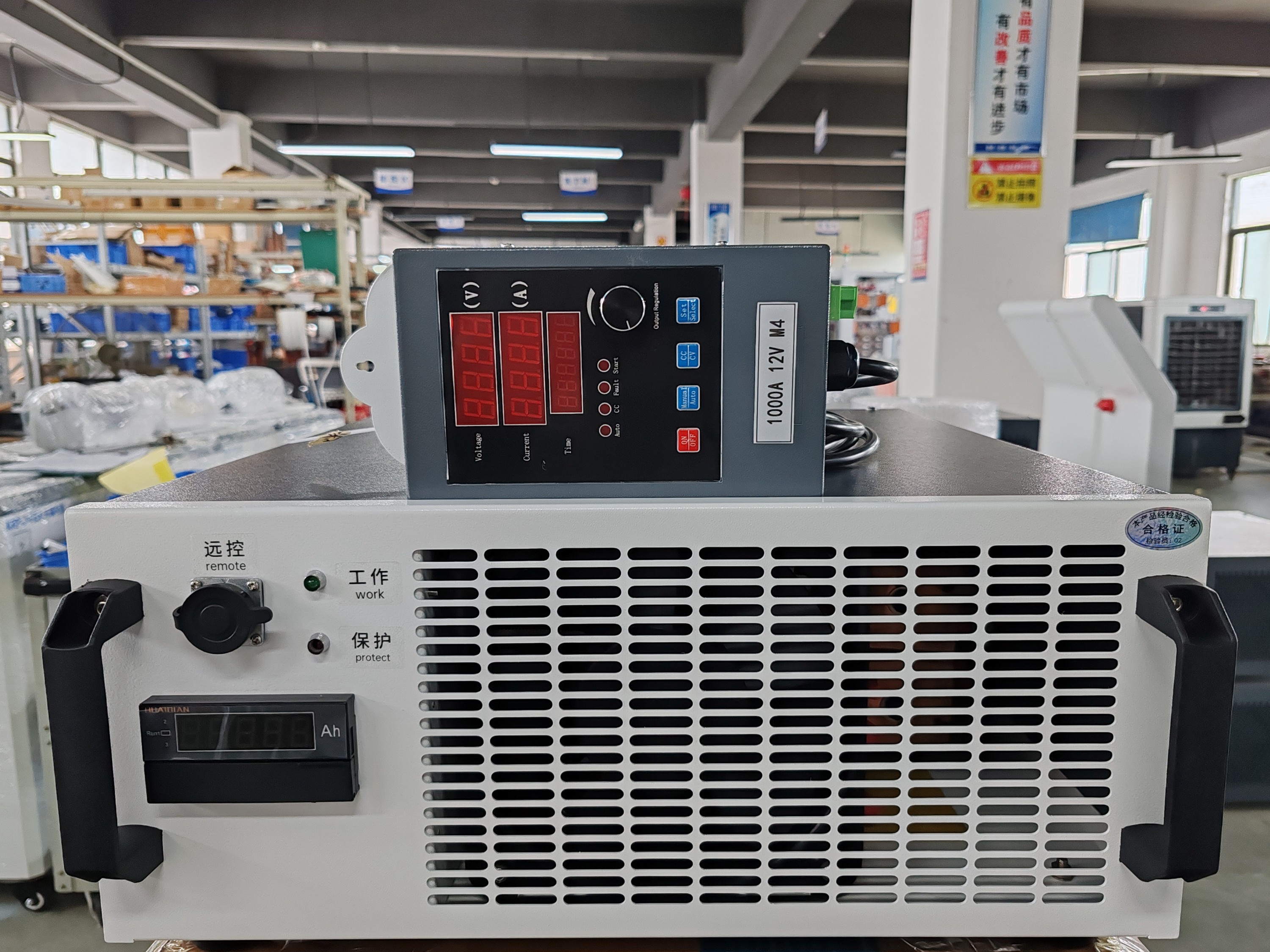

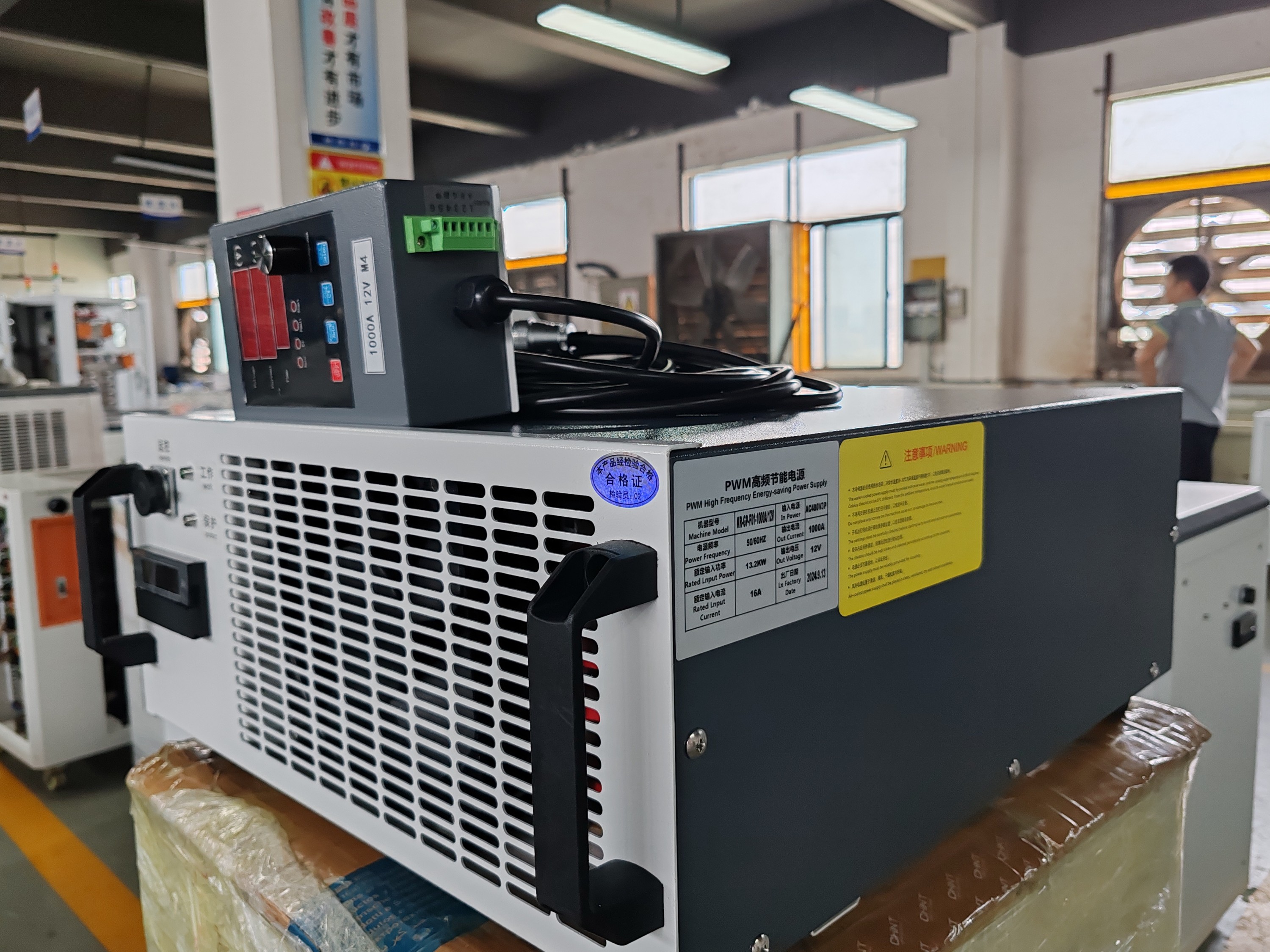

1000A 12V IGBT Electroplating Rectifier Power Supply | Industrial DC Plating System
This is a high current electroplating rectifier with built-in over-voltage and over-current protection, ideal for anodizing and plating applications in commercial metal finishing shops.
New features include remote control box with 5 meters long cabel from main power supply, filters on fans, and timer operation for easy process control.
- Product Details
- Technical Specification
- After-sale service
Easy control of both current and voltage outputs using a remote control box
Timer and alarm function allows easy control of process
Outputs: 0-12 V and 0-1000 A
Protection: over-voltage and over-current protection
Input voltage: 220V -240V AC (No NEMA plug included)
Voltage Stabilization: <=0.5%
Current Stabilization: <=1%
Load Regulation: <=0.5%
Ripple noise: CV <= 5%
Environment: 0-40C, relative humidity < 90%; no condensation
Size: 695*525*243mm
Weight: 37KG
Warranty: 1 year
Your Production Continuity Guaranteed
1. 24/7 Global Support Hub
• 🛡️ Instant Remote Assistance
Dedicated engineers accessible via live chat/video call for real-time troubleshooting - 15-min response guarantee
2. Comprehensive Warranty Protection
• ⏳ 12-Month Full Coverage
Free parts replacement + labor for all non-misuse defects (IGBT modules, control boards, cooling systems)
