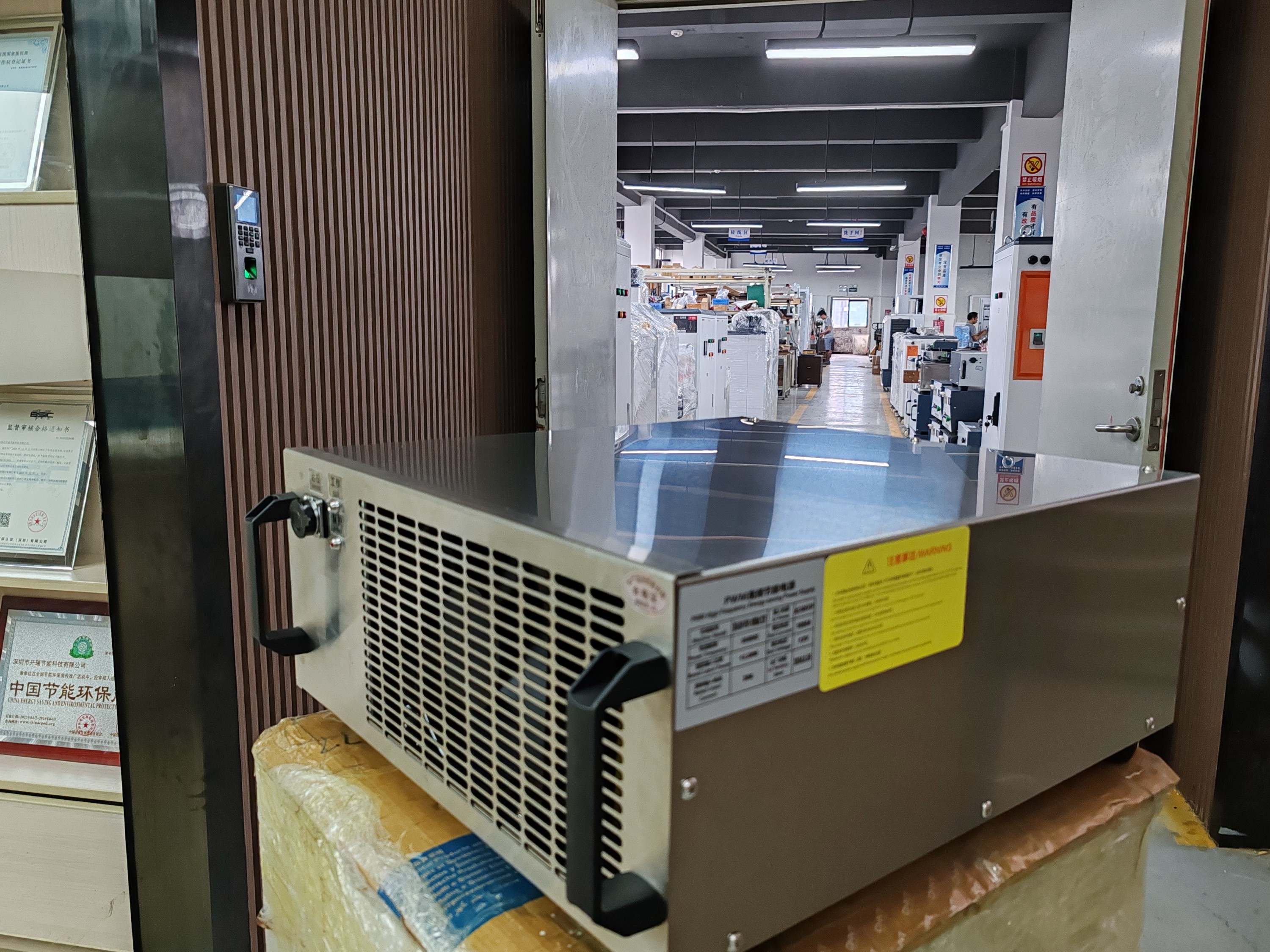

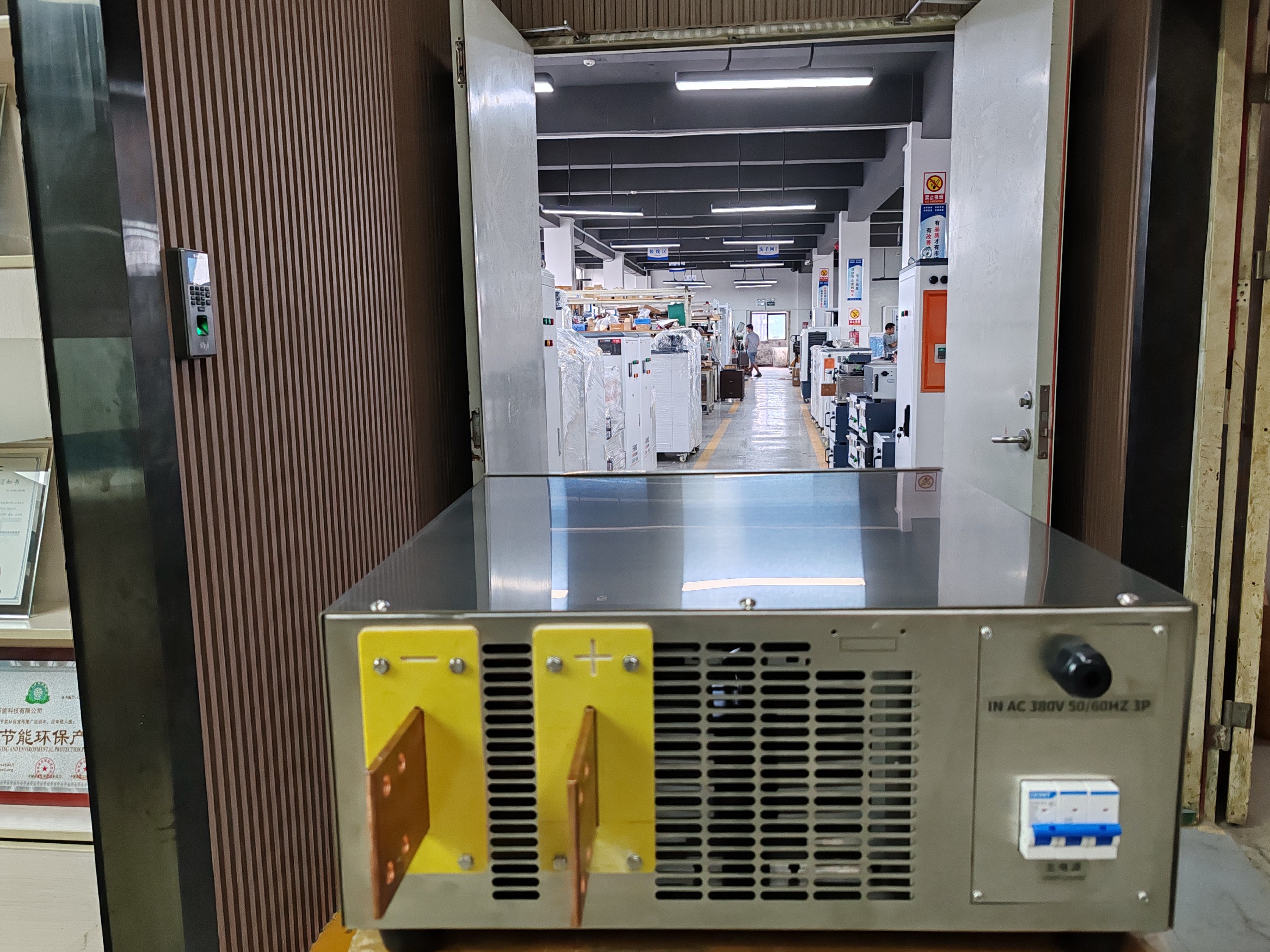

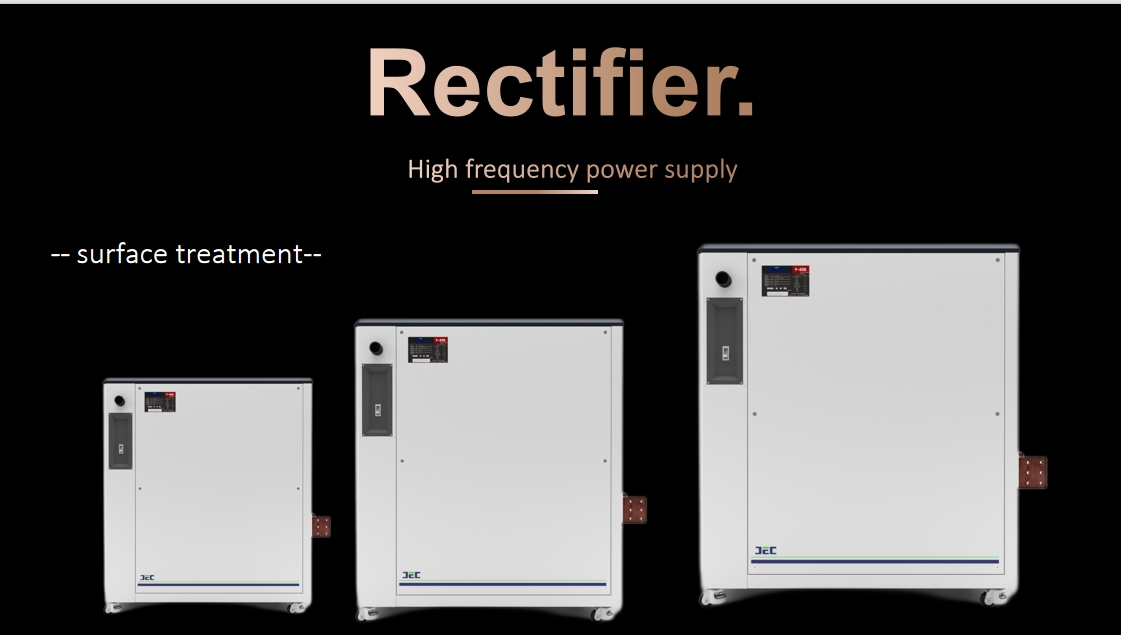

Electroplating Rectifier with 12V 1000A RS485, Timer, AMP Hour Meter, Stainless Steel Case
Precision Power for Demanding Plating Processes
Core Features:
1000A DC @ 12V stable output (±0.5% accuracy)
Stainless Steel 314 (SS314) housing – Extreme corrosion resistance in acidic/alkaline plating baths.
IGBT switching technology – 92% efficiency, low ripple (<1%).
Touchscreen control with recipe storage & remote monitoring (Modbus).
- Product Details

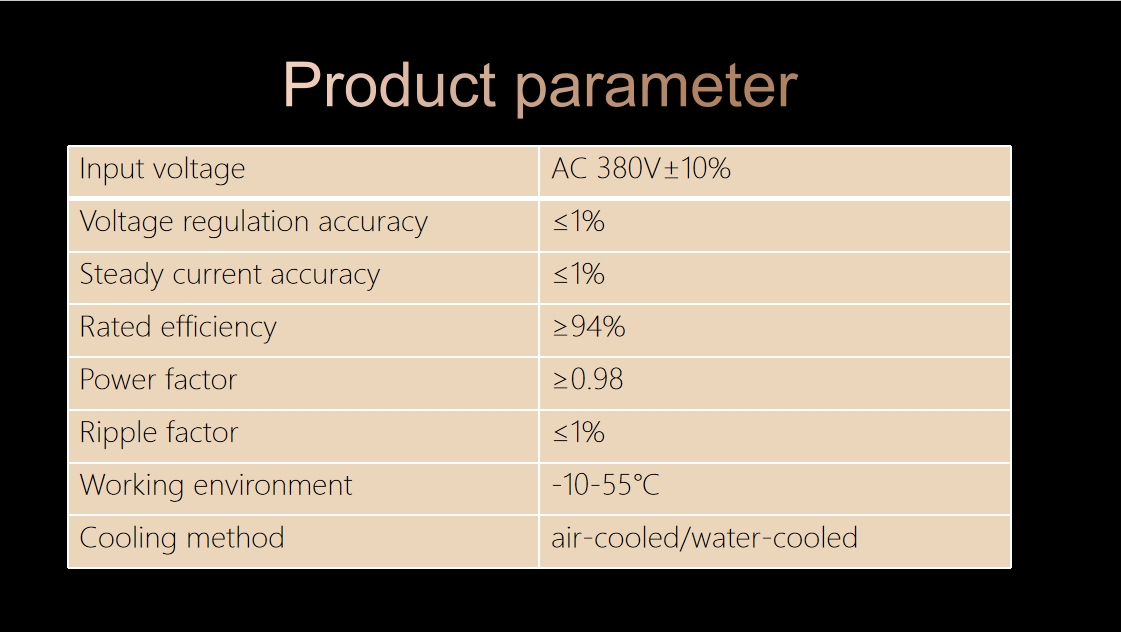

- Technical Specification
- After-sale service

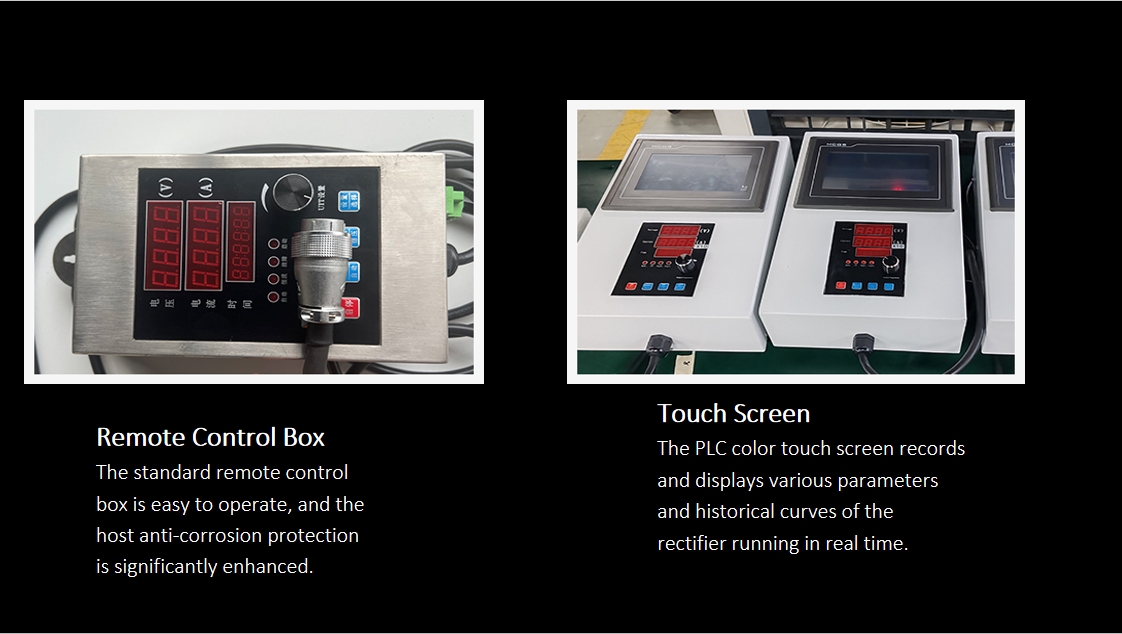

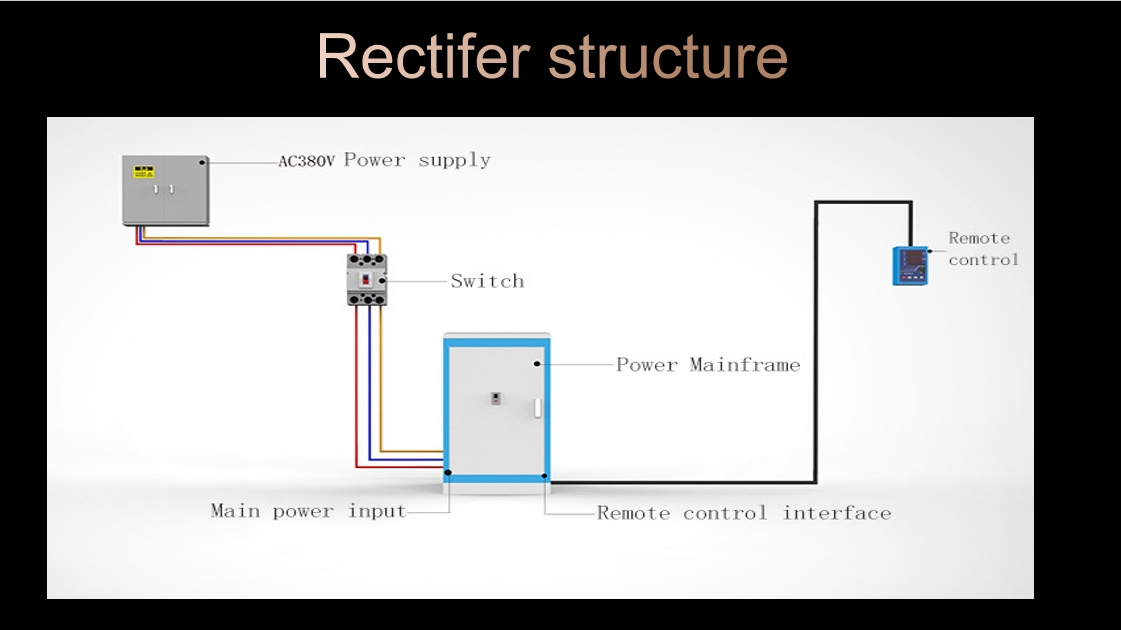

Easy control of both current and voltage outputs using a remote control box
Timer and alarm function allows easy control of process
Outputs: 0-12 V and 0-1000 A
Protection: over-voltage and over-current protection
Input voltage: 220V -240V AC (No NEMA plug included)
Voltage Stabilization: <=0.5%
Current Stabilization: <=1%
Load Regulation: <=0.5%
Ripple noise: CV <= 5%
Environment: 0-40C, relative humidity < 90%; no condensation
Size: 695*525*243mm
Weight: 37KG
Warranty: 1 year
Your Production Continuity Guaranteed
1. 24/7 Global Support Hub
• 🛡️ Instant Remote Assistance
Dedicated engineers accessible via live chat/video call for real-time troubleshooting - 15-min response guarantee
2. Comprehensive Warranty Protection
• ⏳ 12-Month Full Coverage
Free parts replacement + labor for all non-misuse defects (IGBT modules, control boards, cooling systems)
