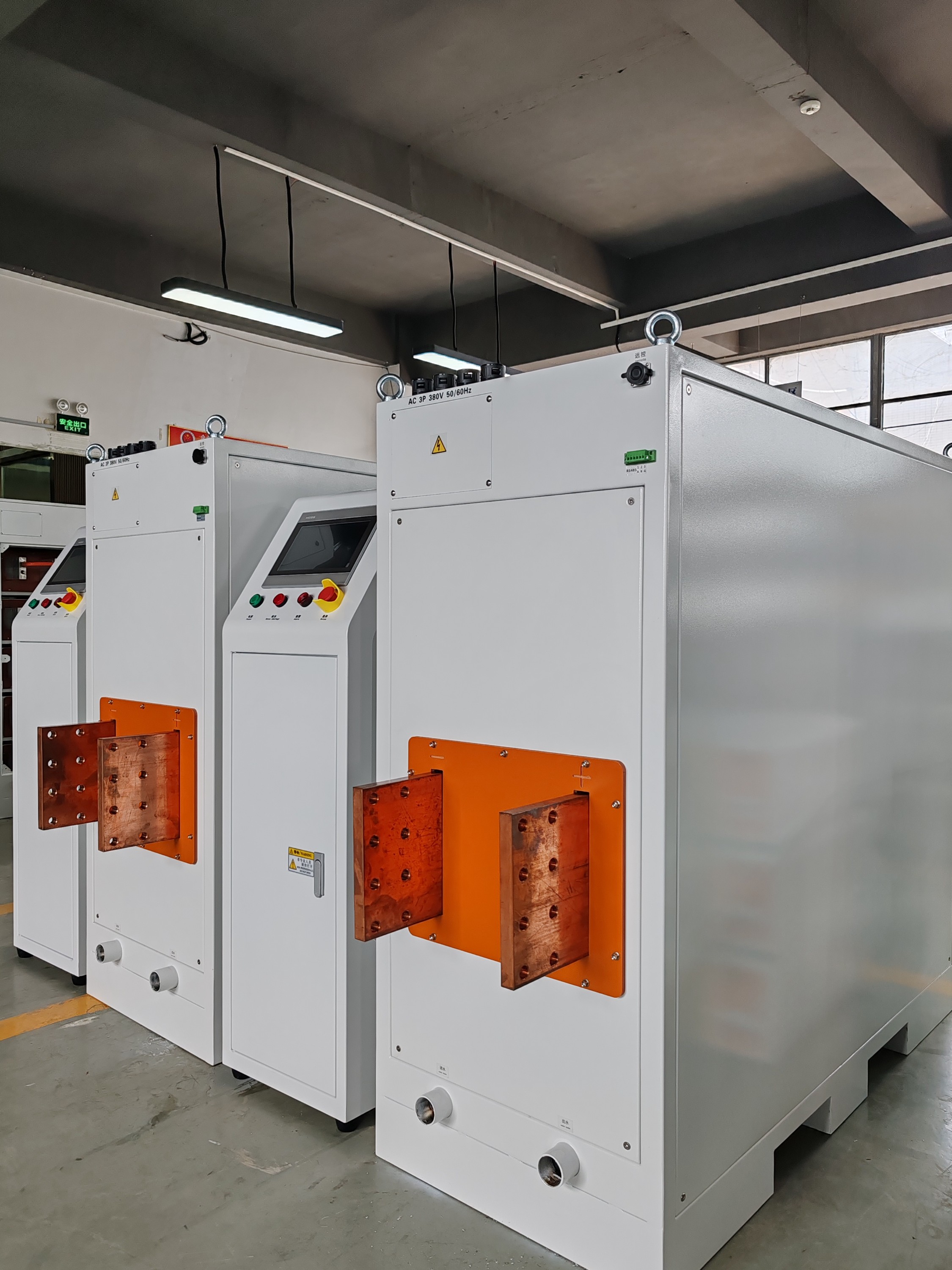

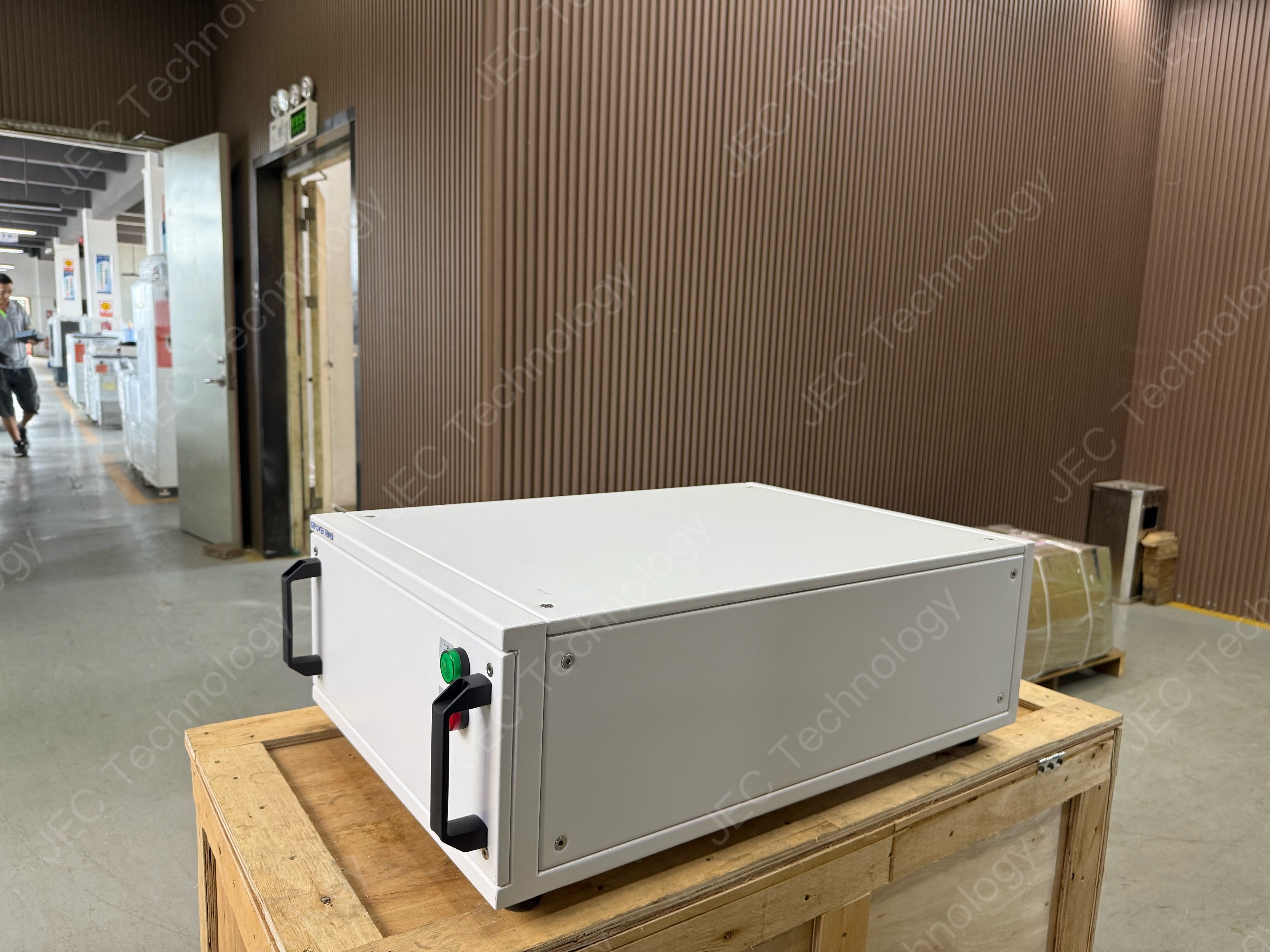

12000A 12V Rectifier Electroplating Machine Chrome Electroplating Rectifier with Water Cooling

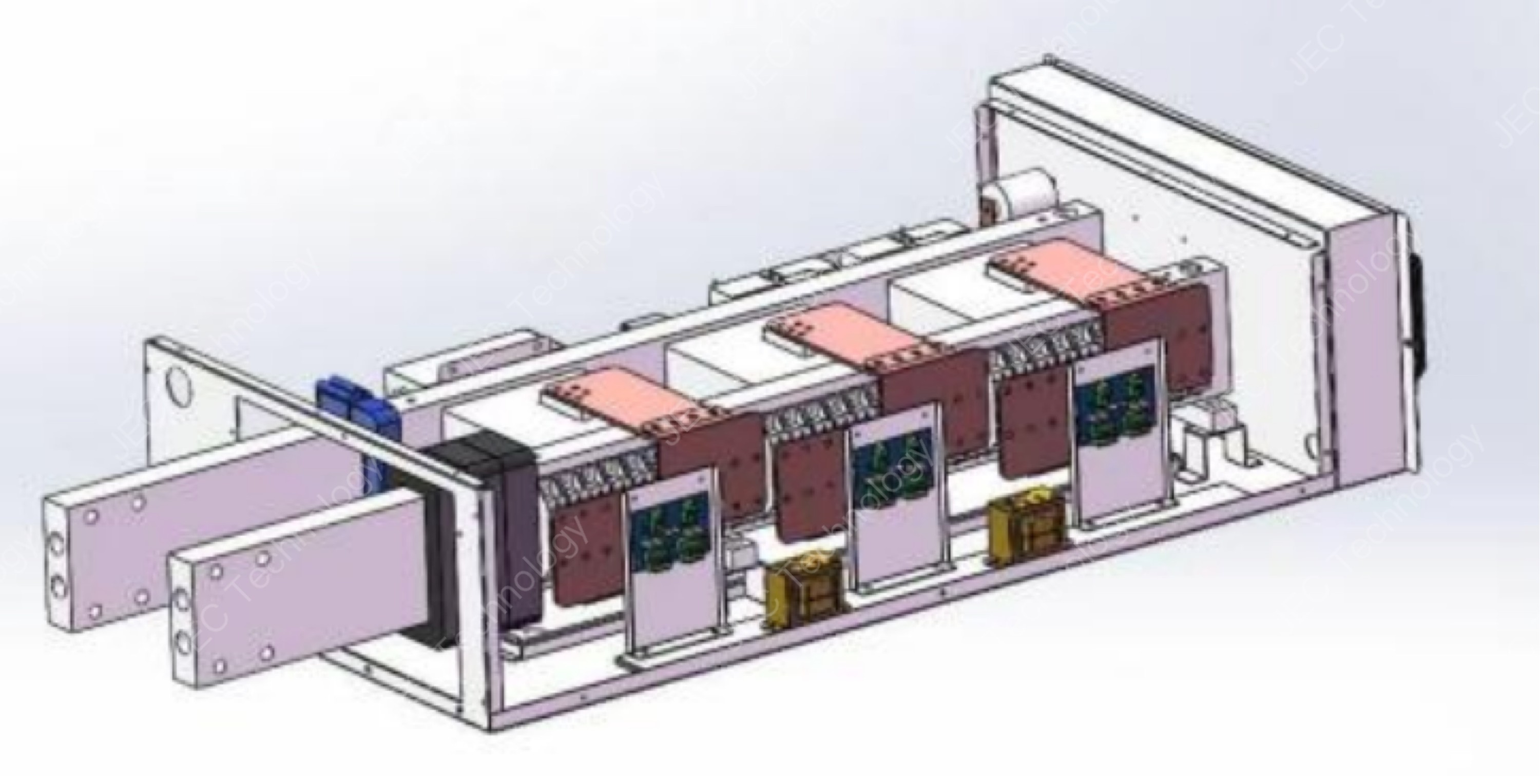

The high-frequency synchronous rectification power supply adopts N+1 mode in the design. Under normal circumstances, all modules participate in the work. If the equipment fails, the power supply will not stop. The central control system will automatically reduce the current operation and cut out the faulty unit, without affecting production.
- Product Details
- Technical Specification
- After-sale service
| Voltage | 380Vac±10%, 50/60Hz (default) 415Vac±10%, 50/60Hz (optional) 440Vac±10%, 50/60Hz (optional) 480Vac±10%, 50/60Hz (optional) |
| Rated power | 144KW |
| Output voltage adjusting range | 0V ~ 12V |
| Output current adjusting range | 0A ~ 12000A |
| CC (constant current) accuracy | ≤±1% |
| Efficiency | ≥95% (measured @ 80%-100% resistive loading) |
| Power factor | ≥0.92 |
| Working ability | Withstand long-term continual working at full-loading. |

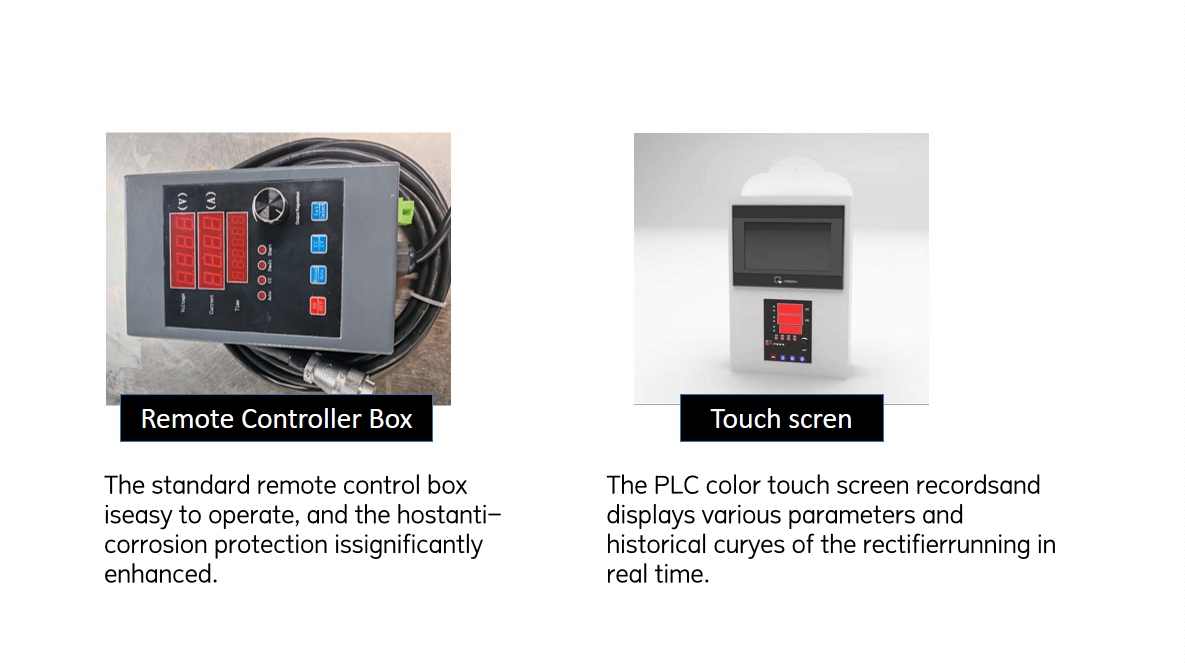

| Control mode | Remote controller/ Touch screen with RS485 communication interface |
| Operation panel control function | Output start / stop switch/ Constant voltage / Constant current state transfer switch |

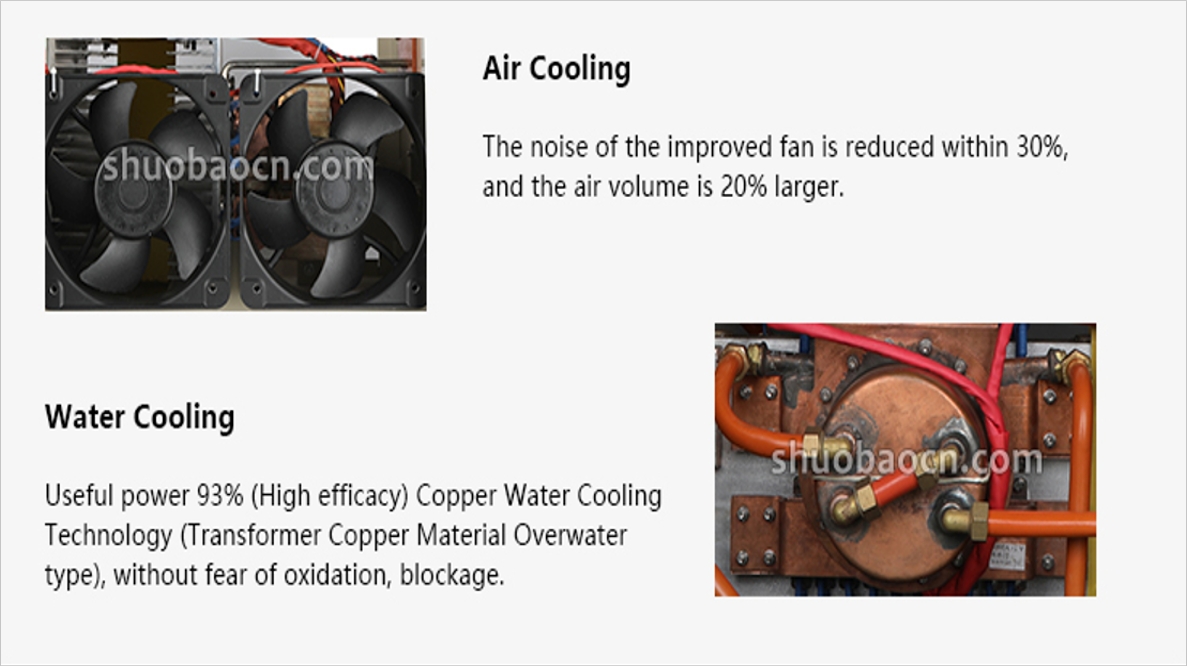

| Cooling method | Water cooling or forced-air cooling. |
1. Scope of Service
We provide exclusively remote technical support for our electroplating rectifiers. Services include:
Remote troubleshooting and diagnostics
Software/firmware updates & configuration guidance
Operation/maintenance manual consultation
Performance optimization advice.
2. Limitations & Exclusions
❌ No on-site repair/replacement for physical failures (e.g., damaged PCB, burnt components).
❌ Not liable for failures caused by:
Improper installation/power supply
Unauthorized modifications
Environmental factors (corrosion, humidity, etc.)
Force majeure (e.g., natural disasters).
❌ Support void if equipment is tampered with by non-certified personnel.
3. Warranty Coverage
Hardware warranty covers free shipment of replacement parts (labor not included).
Remote support is provided free of charge during warranty period (1 year).
Post-warranty support: Paid remote service ($XX USD/hour).
4. Critical Notice
The customer must employ qualified local electricians for:
Initial installation & commissioning
Hardware repairs/replacements
Safety compliance inspections.
We decline all liability for accidents arising from unqualified operations
